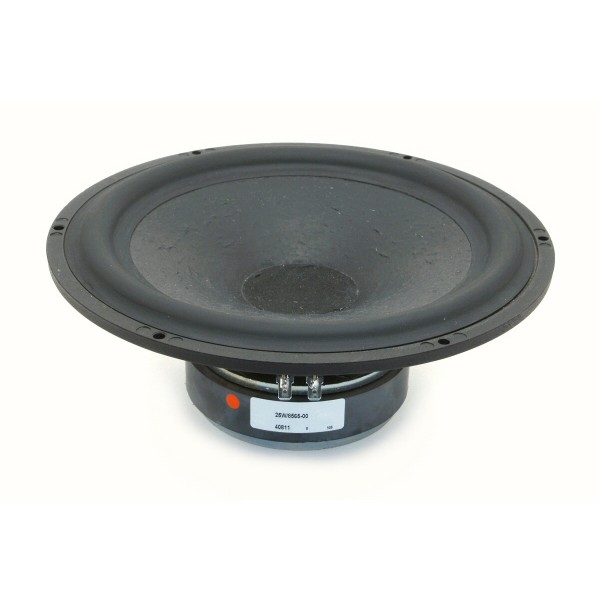

Scan-Speak Classic 25W/8565.00
Artikelnummer: 7385650
Voorraad:ja
Prijs is inclusief BTW
Aantal in een verpakking: 1
€ 264,95
Bestellen
Omschrijving

Specs

Electrical Data



  • Nominal Impedance
 Zn 5.5 ohm




  • Voice Coil Inductance
 0.4 mH

TS Parameters

  • Resonance Frequency
 Fs 20 Hz
  • Mechanical Q factor
 Qms 5.4
  • Electrical Q factor
 Qes 0.44
  • Total Q factor
 Qts 0.41
  • Force Factor
 Bl 8.2.Tm
  • Mechanical Resistance
 Rms 1 Kg/s
  • Moving Mass
 Mms 43 g
  • Effective Piston Area
 Sd 330 cm^2
  • Equivalent Volume
 Vas 229 ltrs
  • Sensitivity
 2.83V/1m 88 dB



Power Handling



  • 100h RMS noise test
 IEC 100 W

Voice Coil and Magnet Parameters

  • Voice Coil Diameter
 42 mm
  • Linear Excursion
 +/- 6.5 mm
  • Max mech. excursion
 +/- 12 mm



Tekeningen

25W-8565-00(2)
